MVSE-600 SERIES

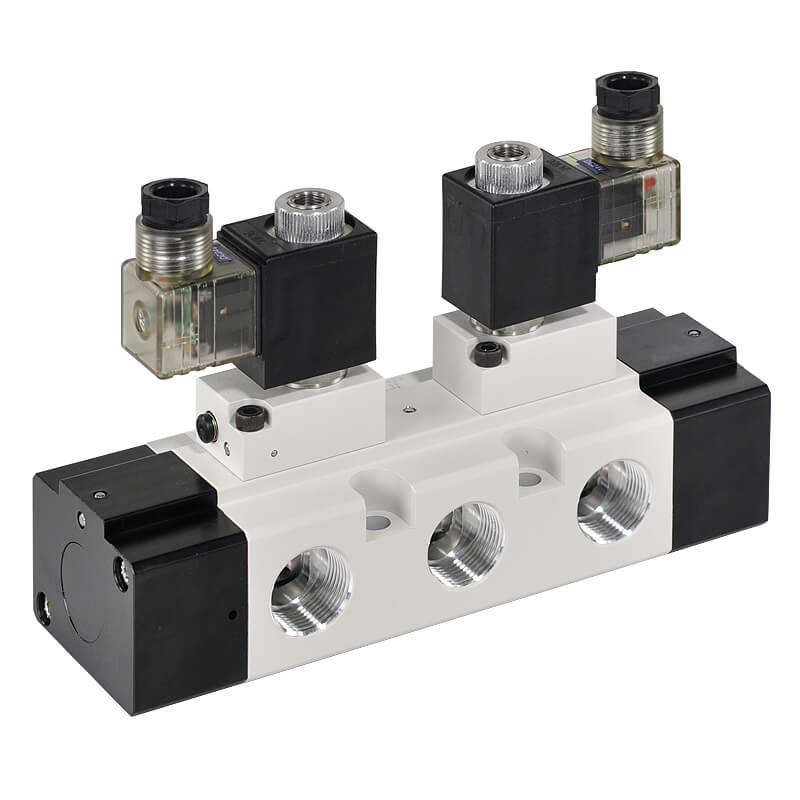

Solenoid valve MVSE-600
- Design change : Coil color (black→gray)
- Body width: 60 mm, Port size: Rc3/4, Rc1,
- Operating pressure range: 0.2~0.7 MPa,
- Proof pressure: 1 MPa, Flow: 5227, 5440 l/min (25A).
Description
Product Catalog
| Specification | |
| Body width | 60 mm |
| Bore No. | 20A, 25A |
| Port size | Rc3/4, Rc1 |
| No. of port | 5 |
| No. of position | 2 |
| Medium | Air |
| Operating pressure range | 0.2~0.7 MPa |
| Proof pressure | 1 MPa |
| Flow | 5227 l/min(20A), 5440 l/min(25A) |
| Effective orifice | 20A: 96 mm2、25A: 100 mm2 |
| Response time | 80 ms |
| Ambient temperature | －5~＋50℃ (No freezing) |
| Voltage | AC110V, AC220V (50/60)Hz, DC24V |
| Power consumption | AC=13/11VA, DC=10W |
| Available voltage range | ±10% |
| Insulation class | H class |
| Weight | 1817g, 2102g |
