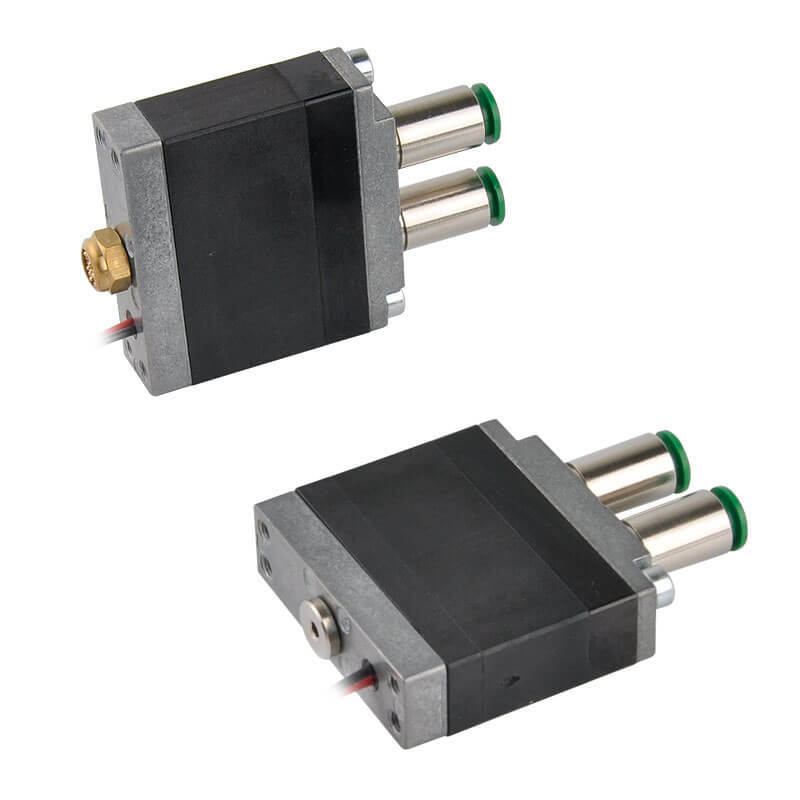

Direct acting type compact solenoid valve MVDA-120
Solenoid valve MVDA-120
The body is 12mm wide, No. of port: 2, 3 direct-acting solenoid valve, 35g weight, flow rate 100 Nl/min, response time < 2ms, product life: 500 million switching cycles.
Description
Product Catalog
| Specification | |
| Body width | 12 mm |
| No. of port | 2, 3 |
| No. of position | 2 |
| Medium | Non-lubrifcated dry air, Neutral gases |
| Operating fluid temp. | –10~+50°C |
| Operating pressure range | 0~0.8 bar |
| Flow rate | 100 Nl/min |
| Response time | ON/OFF= < 2 ms |
| Ambient temperature | –10~+50°C |
| Filtration rating | min. 40 µm |
| Voltage | Speed-up: DC24V, Hold: DC5V |
| Power consumption | 0.8 W (Hold) |
| Max. operating frequency | 300 Hz (at 250Hz with driver board) |
| IP protection class | IP62 |
| Weight | 35 g |
